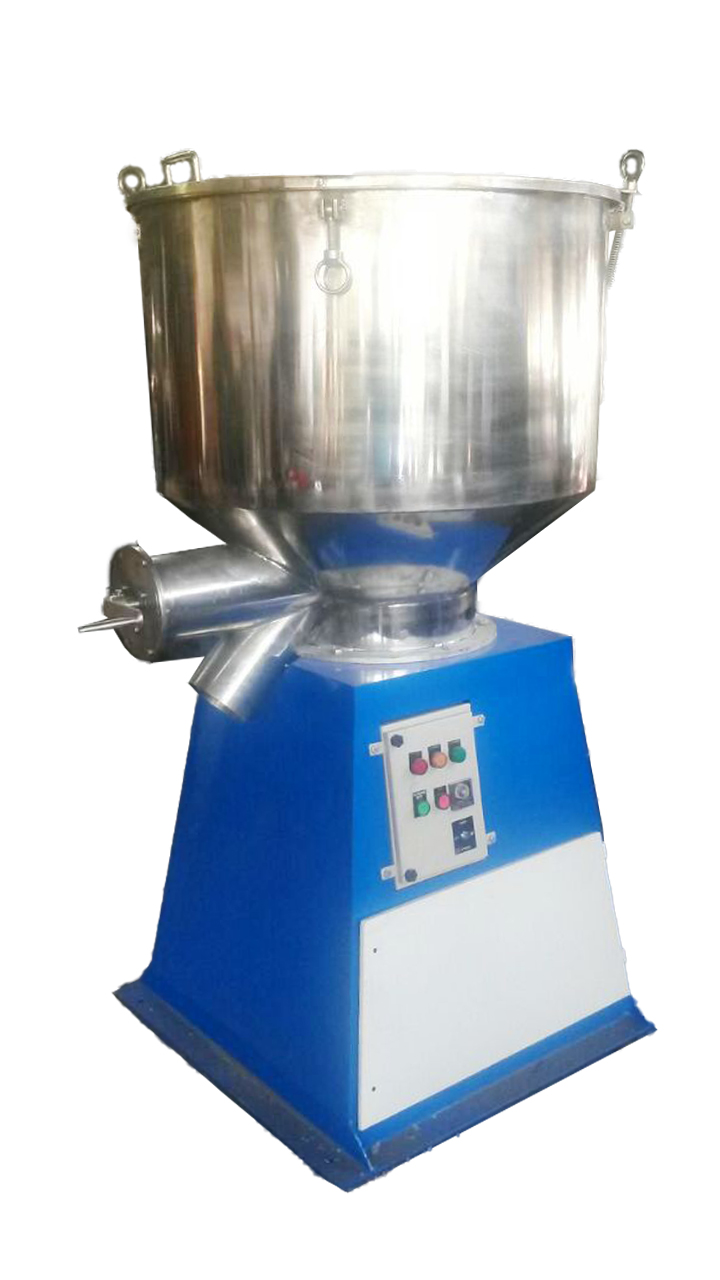

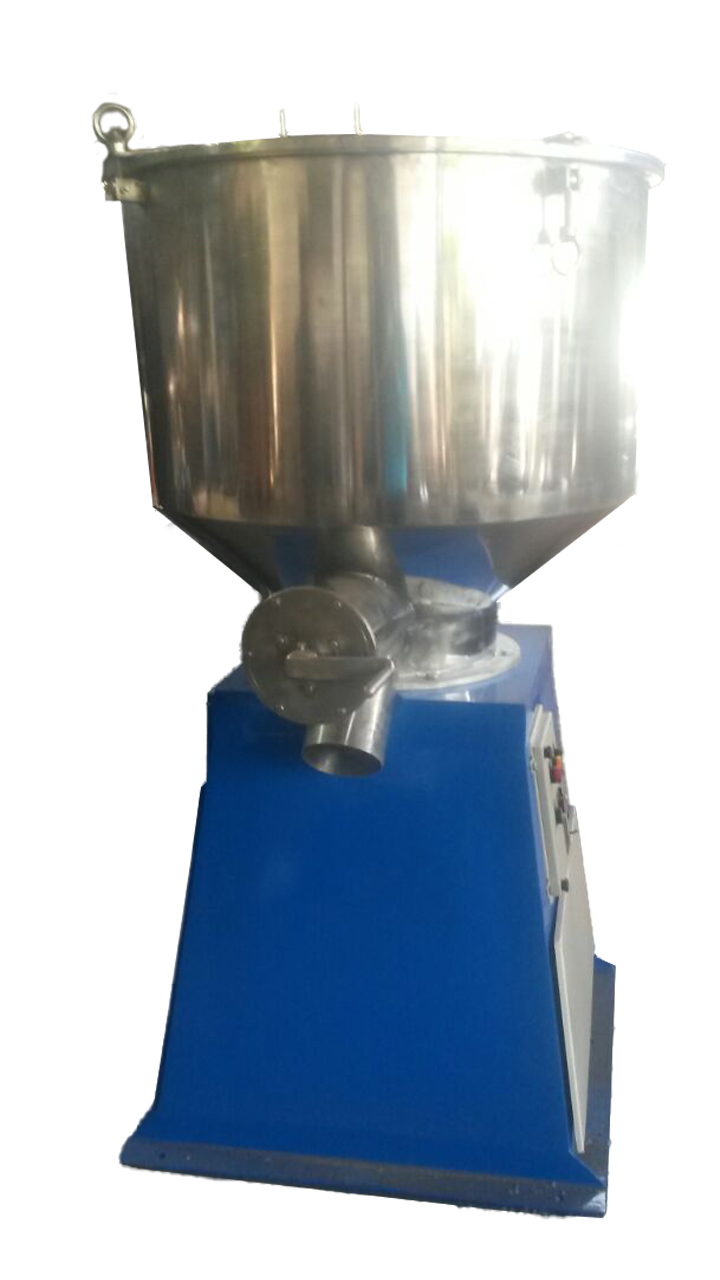

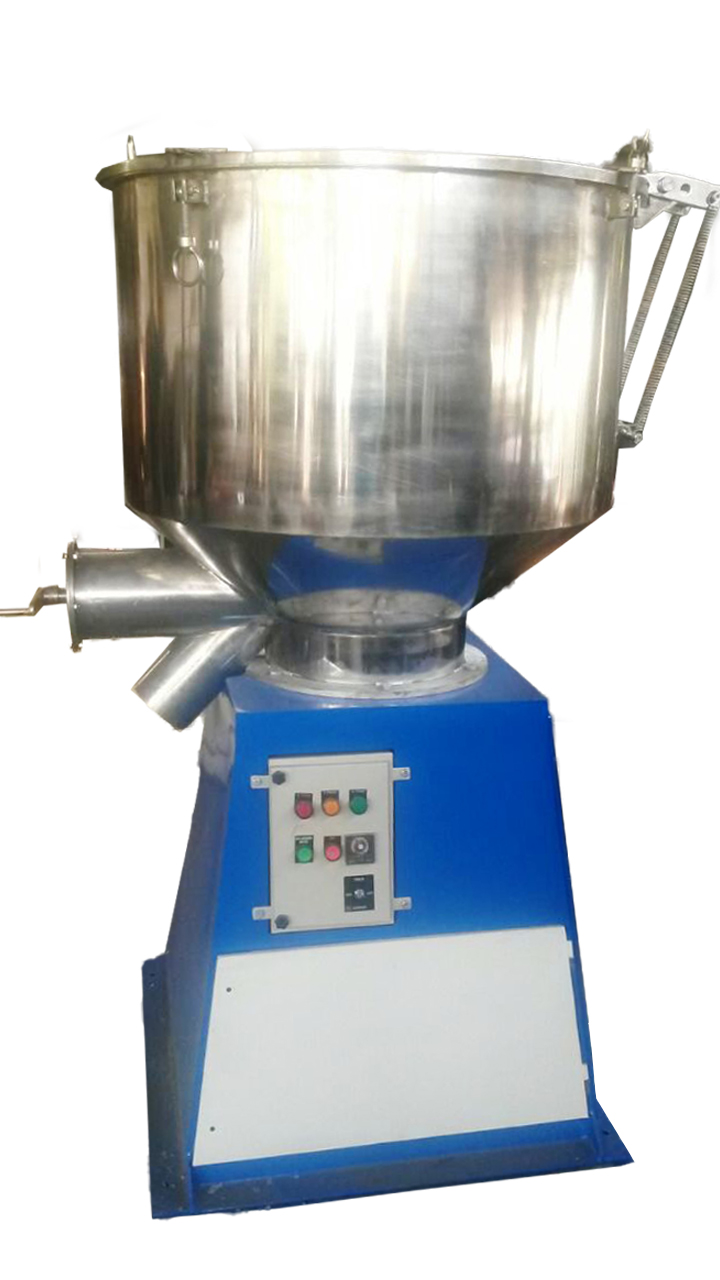

Vertical Color Mixer Machine

Click to enlarge

Vertical Color Mixer Machine

Special Features

• Efficient Master Batch & Colour Mixing
• S.S. Vertical chamber with Blade/Stirrer
• Provided with Auto stop timer
• Easy charging & discharging of material.

Model MVM-25 MVM-50 MVM-100 MVM-150
Mixing Capacity 25Kgs/batch 50Kgs/Batch 100Kgs/Batch 150Kgs/Batch
Power Required
(With The Gear Motor )		 1HP (0.75KW) 2HP (1.5KW) 3HP (2.25KW) 5HP (3.75KW)
Mixing Time In Minutes 6 to 8 Minutes 6 to 8 Minutes 6 to 9 Minutes 9 to 12 Minutes
Control Box With Timmer 0 to 20 Minutes 0 to 20 Minutes 0 to 30 Minutes 0 to 30 Minutes
