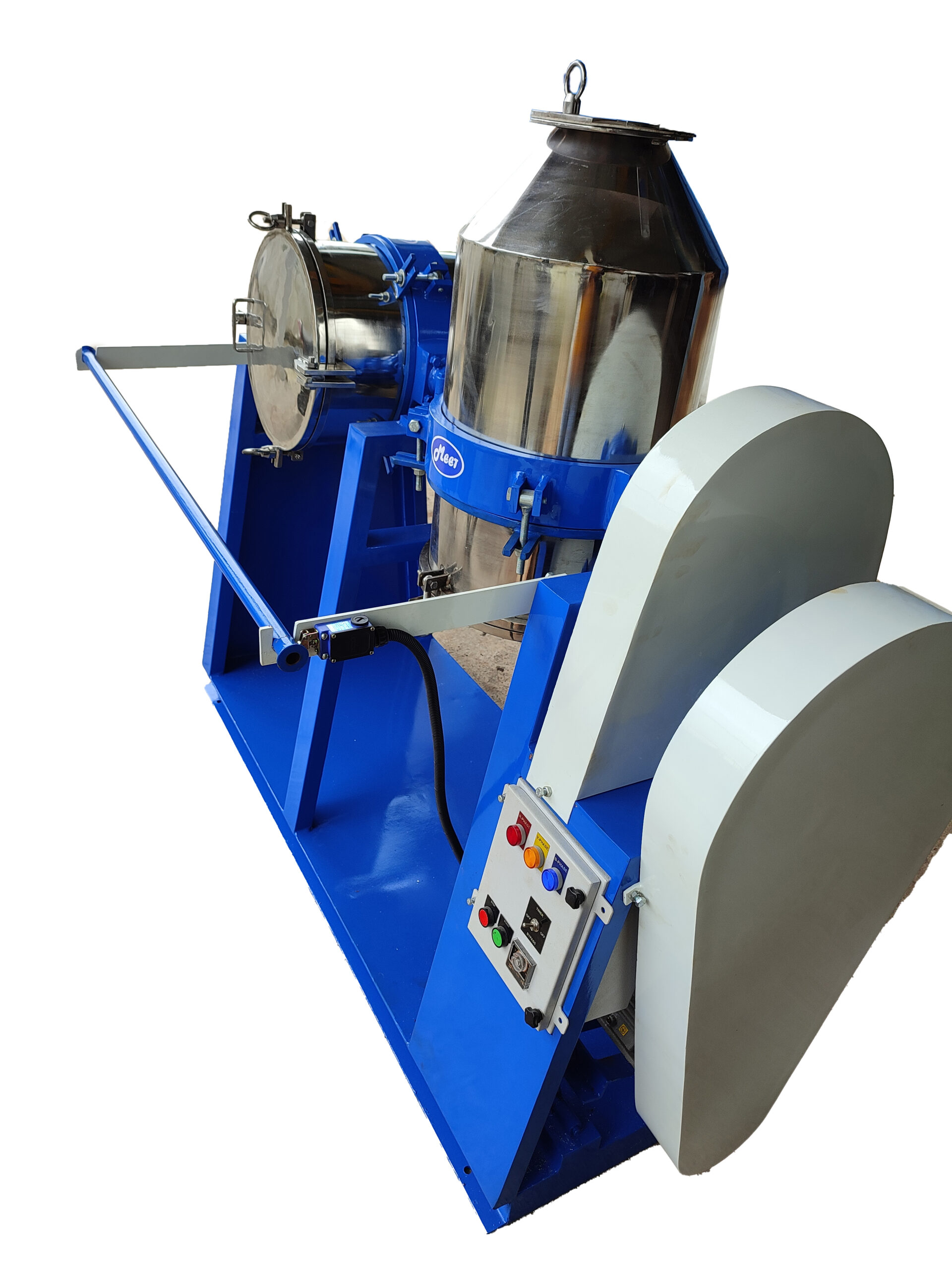

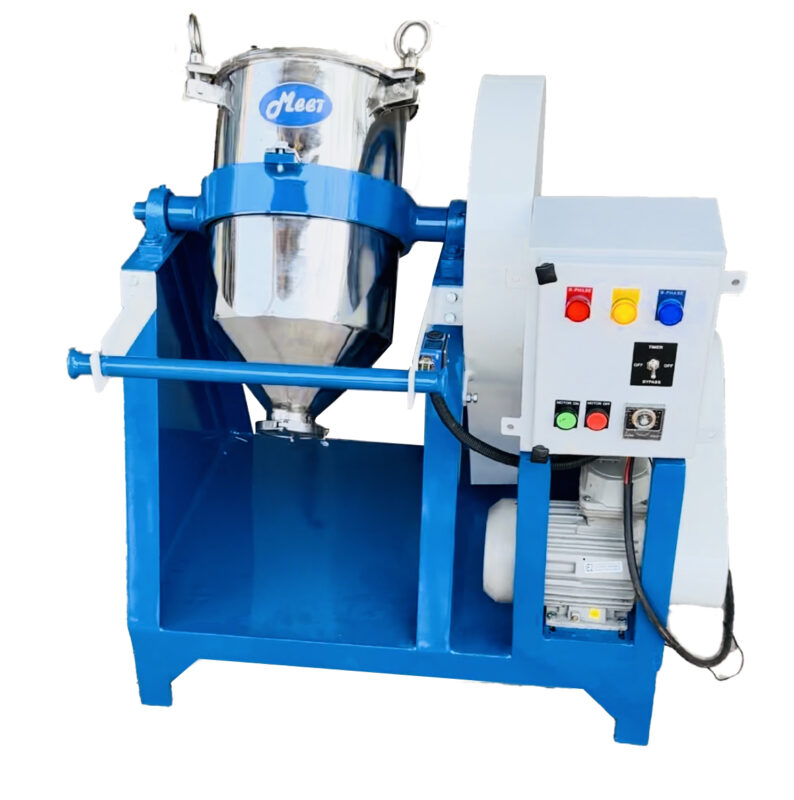

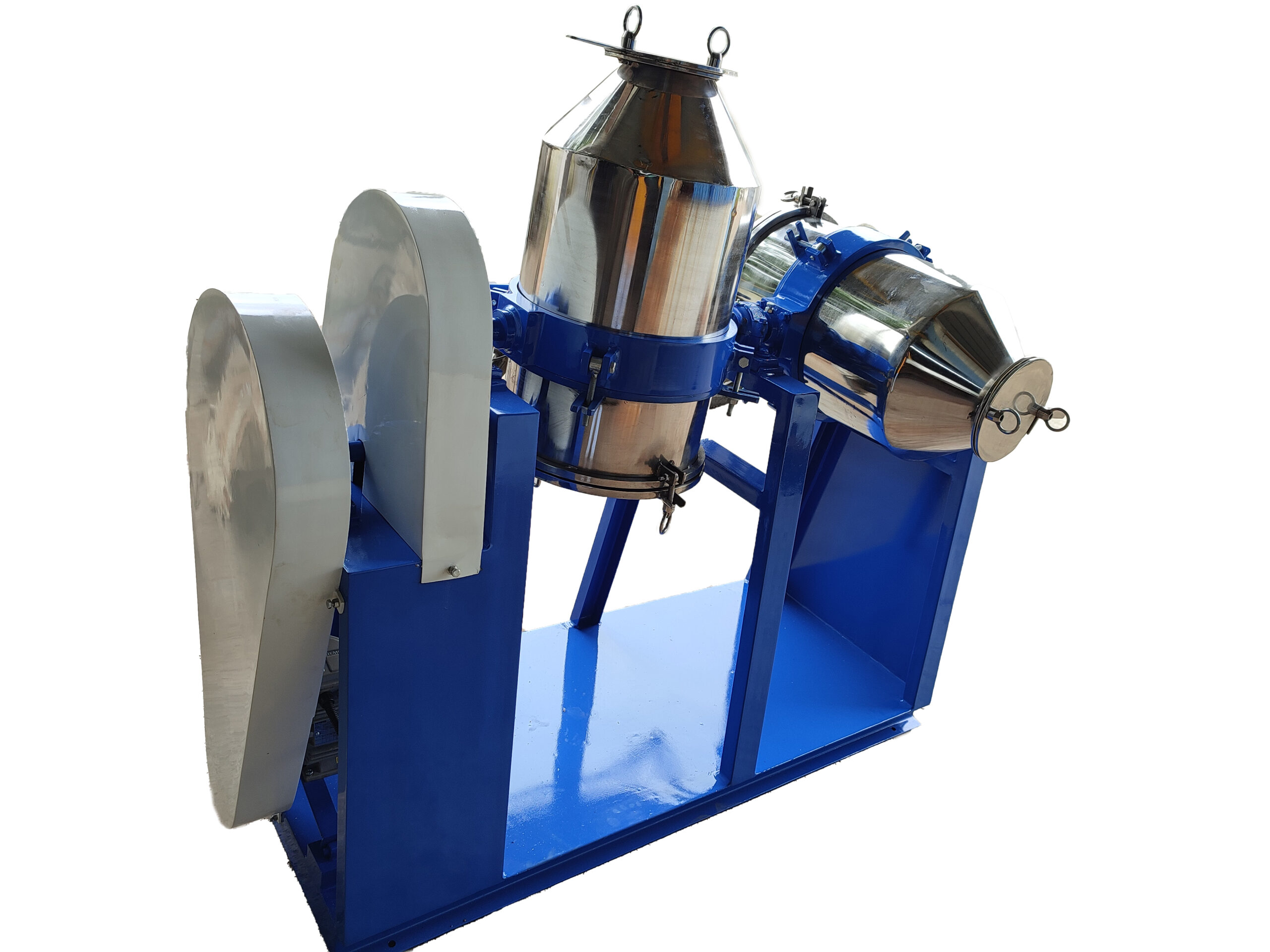

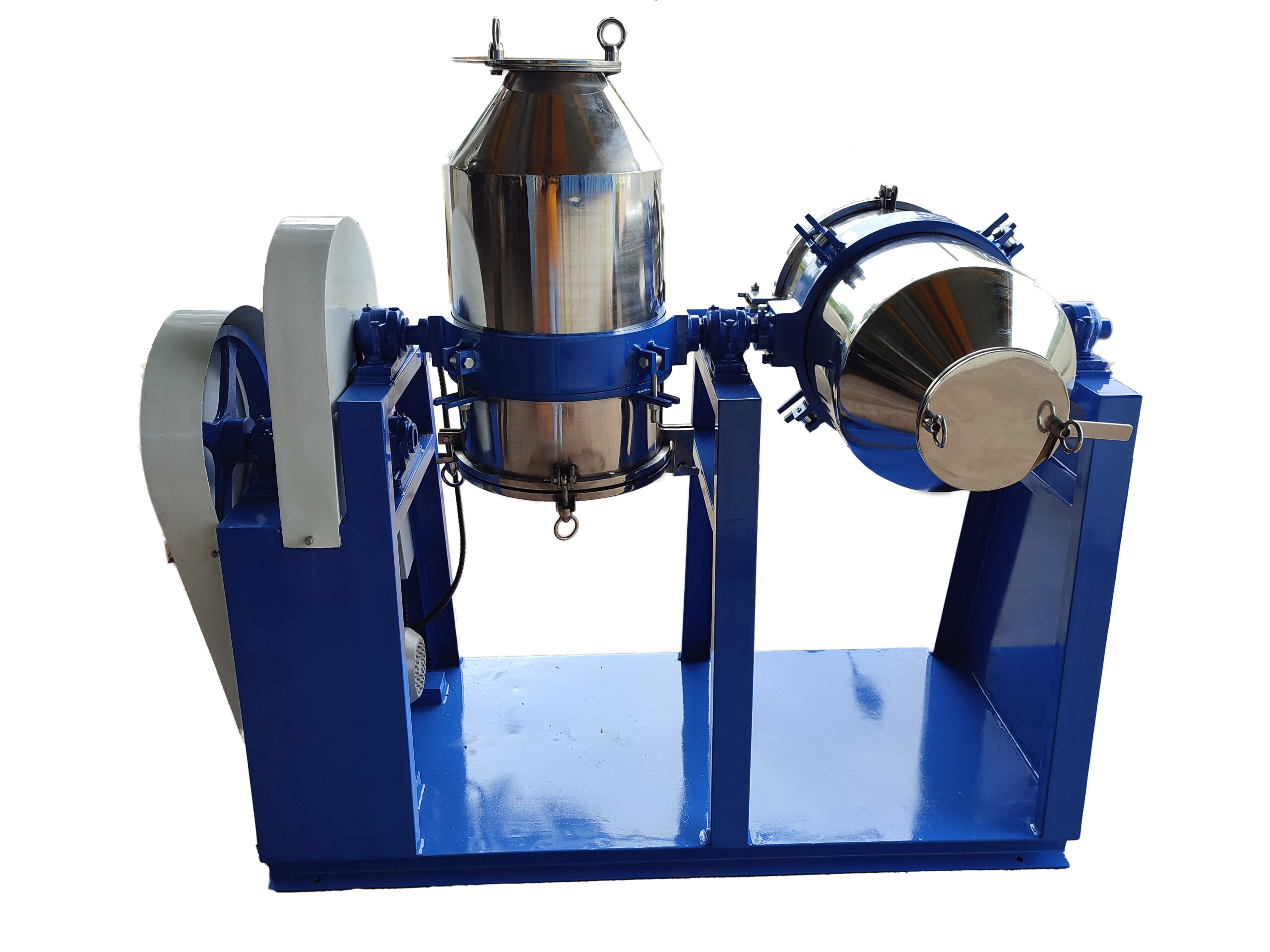

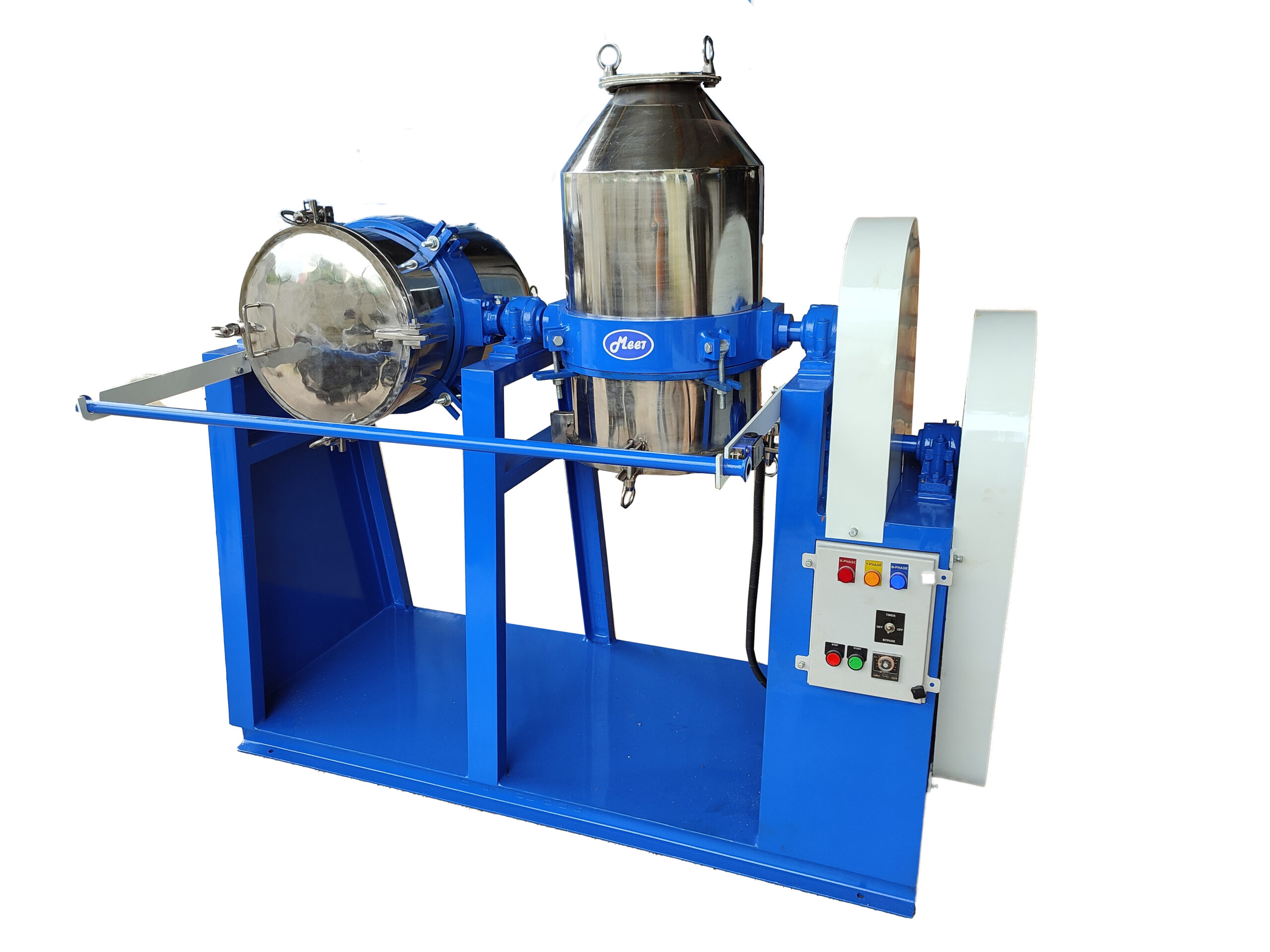

Double Conical Dry Color Mixer

Click to enlarge

Double Conical Dry Color Mixer

Special Features :
• Efficient colour mixing
• Easy to operate
• S.S. Mixing drum
• Save Pigments
• Safety limit switch
• Provided with Auto stop timer built in control box
• Wide choice in six different models from 25Kgs/Batch to 200Kgs/Batch.

Model MDM-25 MDM-50 MDM-100 MDM-150 MDM-200
Mixing Capacity 25Kgs/batch 2 x 25Kgs/Batch 2 x 50Kgs/Batch 2 x 75Kgs/Batch 2 x 100Kgs/Batch
Power Required 1HP (0.75KW) 2HP (1.5KW) 3HP (2.25KW) 5HP (3.75KW) 7.5HP (5.6KW)
Mixing Time In Minutes 6 to 8 Minutes 6 to 8 Minutes 6 to 9 Minutes 9 to 12 Minutes 9 to 12 Minutes
Control Box With Timmer 0 to 20 Minutes 0 to 20 Minutes 0 to 30 Minutes 0 to 30 Minutes 0 to 30 Minutes
