MR-800
MR-800

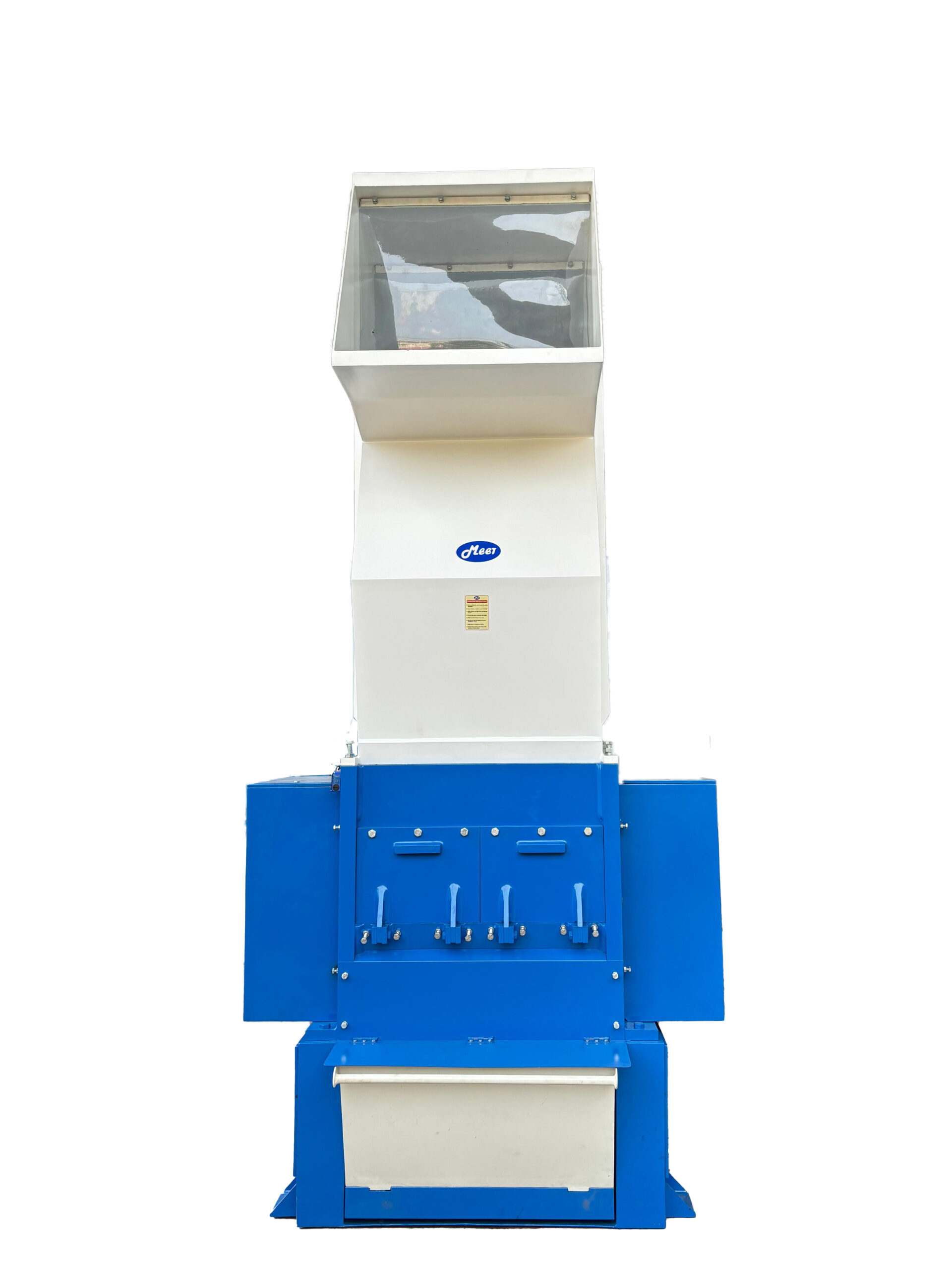

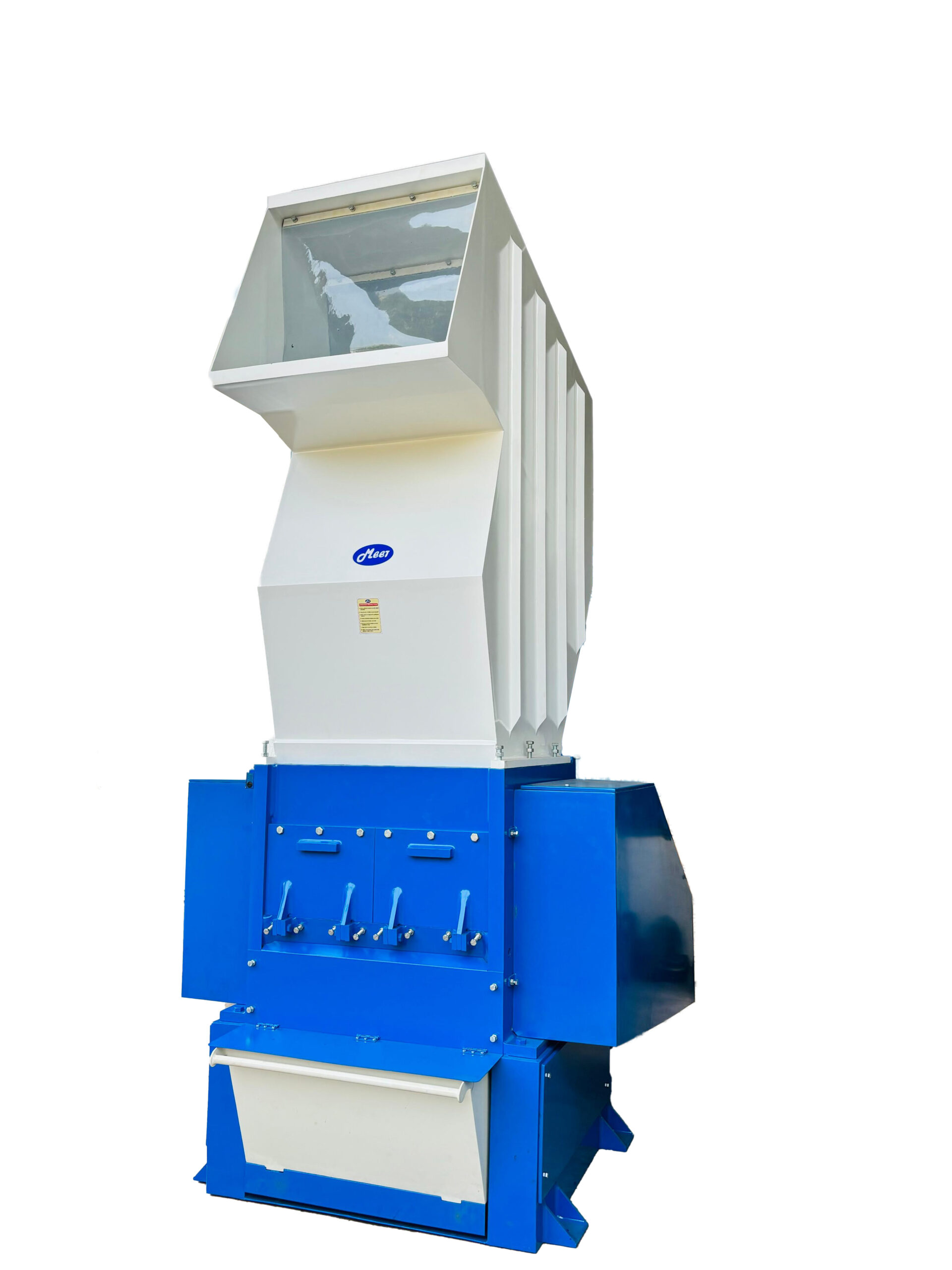

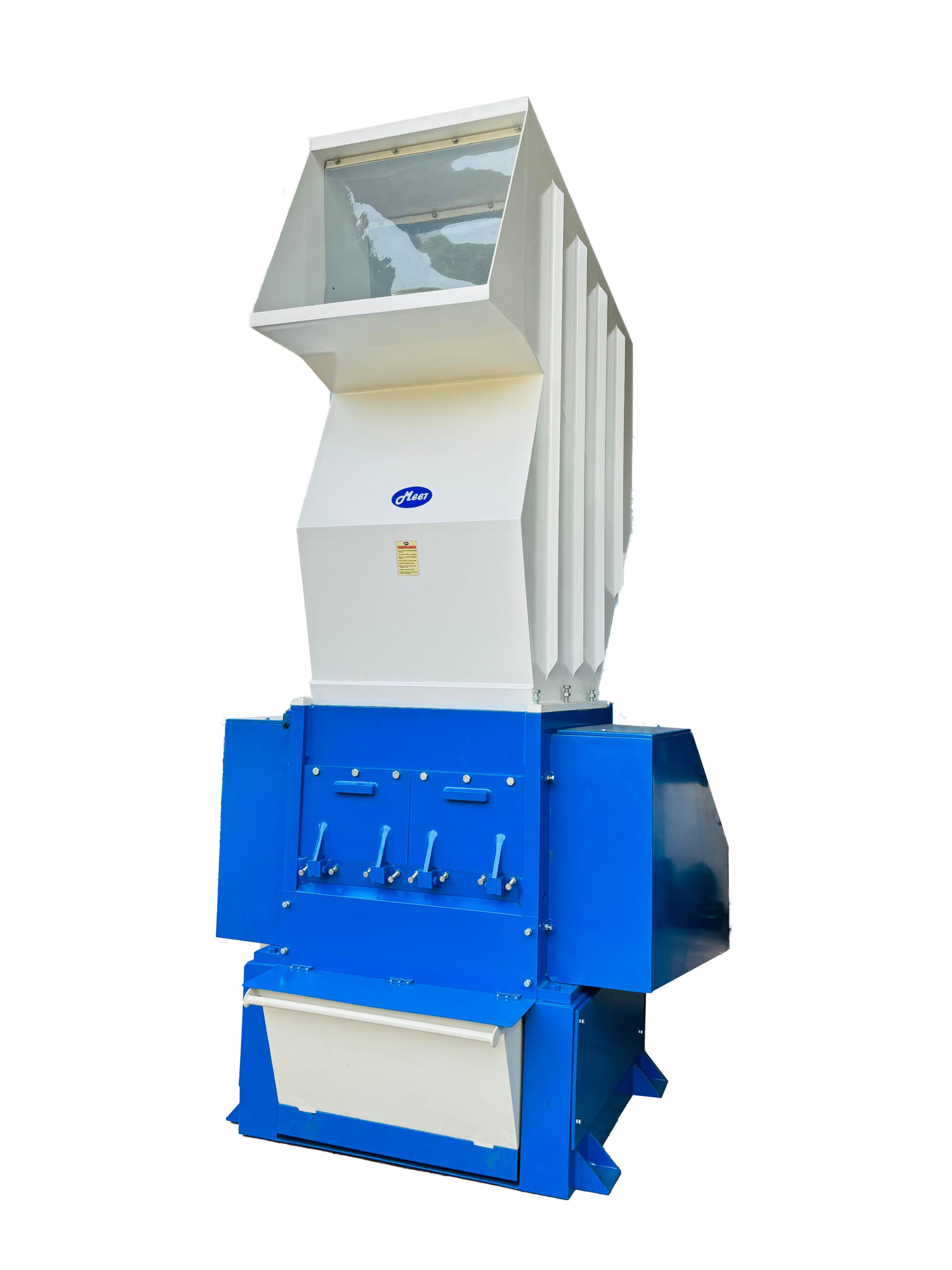

Built on decades of engineering expertise, the MR-800 Plastic Scrap Granulator is a robust 32-inch machine designed for high-capacity grinding of industrial plastic waste. With a throat size of 150mm x 150mm and a grinding capacity ranging from 650 to 800 kg/hr, it’s ideal for processing caps, cups, runners, and other solid commercial items.
🔧 Key Features:
-
High throughput for continuous operations
-
Heavy-duty design for industrial-grade plastics
-
Available in multiple capacity variants
-
Precision-engineered for consistent granule size
-
Low maintenance with energy-efficient performance
Model
|
MCH-800
|
MR-800/5
|
MSTG-800
|
---|---|---|---|
Length of Blades
|
400×2 =800mm
|
400×2 =800mm
|
190mm-12, 400×2=4
|
No. of Blades
|
4×2=8
|
5×2=10
|
12+4=16
|
Throat Size
|
800x750mm
|
800x750mm
|
800x750mm
|
Grinding Capacity
|
550 Kg/Hr.
|
600 Kg/Hr.
|
700 Kg/Hr.
|
Power Required
|
40HP (30KW)
|
50hp (37.5KW)
|
50hp (37.5KW)
|
Floor Space (L&W) in mm
|
2200×1700
|
2200×1700
|
2200×1700
|
Suitable for grinding
|
Grinding 120 ltr.Barells/Auto part, Big CHains & Benches
|
300 mm diameter Pipes & Auto Parts PVC Tiles, Sheets, Aluminium Foils etc.
|
Solid Thick Wall Articles & Lumps & Preforms
|
Category: Granulator
